Marine

Trusted, reliable, listed and certified passive fire protection solutions for offshore and vessels.

For more than 30 years, FireMaster® passive fire protection and thermal insulation systems have provided lightweight fire insulation for structures exposed to both cellulosic and hydrocarbon fires in cruise ships, super-yachts, high-speed ferries, coastal defence vessels, offshore platforms and FPSO’s.

The benefits of these FireMaster systems are:

  • Lower weight designs that minimise weight contribution to structures
  • Improved, simpler installation techniques leading to quicker, easier installation
  • Combined fire, thermal and acoustic insulation

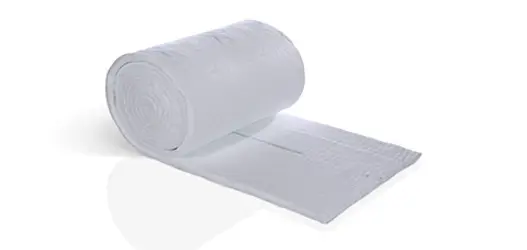

Our FireMaster Marine Plus blanket systems for the fire protection of bulkheads and decks in ships provide an answer to all fire insulation problems in ships, due to the unique combination of features offered:

  • Exceptionally low weight material – A60 steel deck requires 2.4 kg/m² insulation
  • Does not contain any chemical binder and therefore will not generate smoke in a fire
  • 1200°C rated insulation material can be used for hydrocarbon fire protection
  • Non-Toxic material meets UK MOD requirements
  • DNV and MED approved for steel, aluminium and FRP composite fire protection
  • Installation methods are optimised for ease and speed of fitting on board
  • High levels of sound reduction, sound absorption and thermal insulation

Application Solutions

A60 Steel Decks and Bulkheads

Single layer, double layer, floating floor

B15 Wall Extension System

Wall extension

A60 Corrugated Steel Bulkhead

1.5mm and 4.5 mm steel thickness

SOLAS

Lightweight fire insulation for fire protection of steel pipes
